Center Basket Recessed Troffer 2x2 (Dimmable)
(Product specification download)

*See DLC/QPL listing for product listing

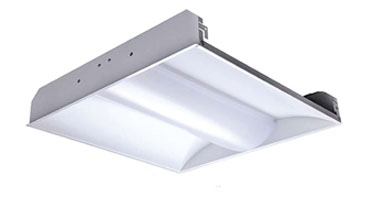

DIS_2x2 series

DIS_22_DimDLC

Features
* Modern and clean style, no exposed fasteners.
* Excellent luminaire efficacy provides significant energy saving.
* Dimmable via 0-10VDC standard.
* Rated Life :50,000 hours.
* Assembled in USA with domestic and imported components.

Specifications
Power consumption 24W and 36W Correlated Color Temp (CCT) 3000K,3500K,4000K & 5000K
Luminaire

*Lumens are actual output values.

24W-3000K:2185 lum;
24W-5000K:2348 lum;

36W-3000K:3348 lum;
36W-5000K:3563 lum;

CRI

80

Line Voltage 120/277VAC Operating Temperature -4F to 104F

(-20C to 40C)

Warranty 5 years
*Information in this document is subject to change without notice.

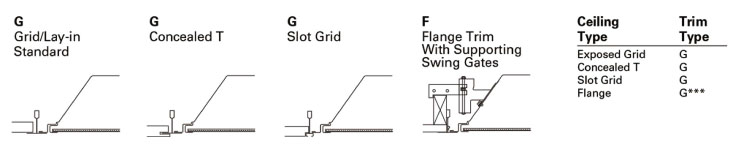

installation method

ETL certificate FCC certificate EC Certificate LVD certificate RoHS certificate Laser test
