Recessed Panel 2x2 (Dimmable)
(Product specification download)

*See DLC/QPL listing for product listing

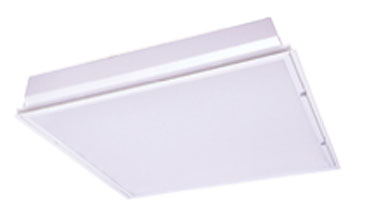

TP_2x2 series

TP_22_DimDLC

Features
* Modern and clean style, no exposed fasteners.
* Excellent luminaire efficacy provides significant energy saving.
* Dimmable via 0-10VDC standard.
* Rated Life :50,000 hours.
* Assembled in USA with domestic and imported components.

Specifications
Power consumption 35W and 40W Correlated Color Temp (CCT) 3000K,3500K,4000K & 5000K
Luminaire

*Lumens are actual output values.

35W-3000K:3208 lum;
35W-5000K:3401 lum;

40W-3000K:3552 lum;
40W-5000K:3848 lum;

CRI

80

Line Voltage 120/277VAC Operating Temperature -4F to 104F

(-20C to 40C)

Warranty 5 years
*Information in this document is subject to change without notice.
installation method

ETL certificate FCC certificate EC Certificate LVD certificate RoHS certificate Laser test
